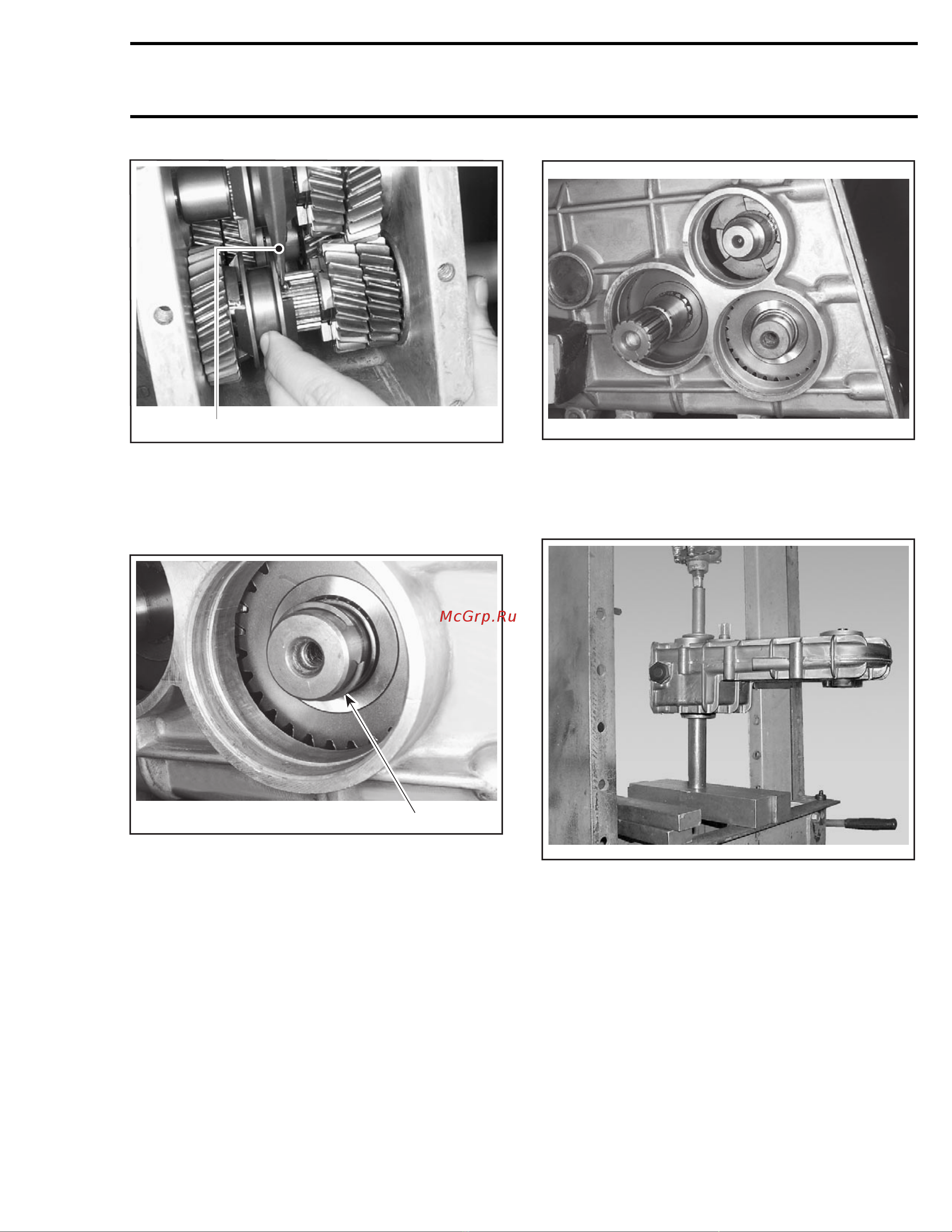

Section 07 TRANSMISSION
Subsection 07 (GEARBOX)
A29D1NA
1
1. Push on ball with a screwdriver then move sliding
sleeve to the right
Finalize driven pulley shaft insertion. Make sure
that gears mesh during insertion. Install circlip
no. 20.
A29D1PA
1
1. Circlip
Install LH side bearings no. 42, 19 and 21,shims
no. 10, circlip no. 9 then, plugs no. 40 and oil seal
no. 41.
A29D1OA
READY TO INSTALL BEARINGS, SHIMS, CIRCLIPS AND PLUGS
CAUTION: Make sure that gearbox is well
supported before inserting driven pulley shaft
bearing, see photo.
A29D2XA
INSTALLATION
Reverse removal procedure. Check pulley align-
ment.
OIL LEVEL
To check, pull dipstick. Oil should reach level
mark.
NOTE: After first outing, oil level will decrease as
the upper oil cavity fills with oil. Recheck oil level
and refill as required.
mmr2005-040 417
