Section02ENGINE

Subsection 11 (REWIND STARTER)

GENERAL

During assembly/installation, use torque values

and service products as shown in exploded

view(s).

Clean threads before applying a threadlocker. Re-

fer to SELF-LOCKING FASTENERS and LOCTITE

APPLICATION at the beginning of this manual for

complete procedure.



WARNING

Torque wrench tightening specifications

must strictly be adhered to. Locking de-

vices (e.g.: locking tabs, elastic stop nuts,

self-locking fasteners, cotter pin, etc.) must

be installed or replaced with new ones where

specified. If the efficiency of a locking device

is impaired, it must be renewed.

INSPECTION

NOTE: Due to dust accumulation, rewind starter

must be periodically cleaned, inspected and relu-

bricated.

CAUTION: It is of the utmost importance that

the rewind starter spring be lubricated peri-

odically using specific lubricant. Otherwise,

rewind starter component life will be short-

ened and/or rewind starter will not operate

properly under very cold temperatures.

Check if rope no. 5 is fraying, replace if so.

When pulling starter grip, mechanism must en-

gage within 30 cm (1 ft) of rope pulled. If not, dis-

assemble rewind starter, clean and check for dam-

aged plastic parts. Replace as required, lubricate,

reassemble and recheck. Always replace O-ring

no. 9 every time rewind starter is disassembled.

When releasing starter grip, it must return to its

stopper and stay against it. If not, check for proper

spring preload or damages. Readjust or replace as

required.

When pulling starter grip 10 times in a row, it must

return freely. If not, check for damaged parts or

lack of lubrication. Replace parts or lubricate ac-

cordingly.

REMOVAL

Using a small screwdriver, extract rope knot from

starter grip. Cut rope close to knot. Tie a knot

near starter.

Remove screws no. 2 securing rewind starter

no. 1 to engine then remove rewind starter.

ROPE REPLACEMENT

Pull out rope. Hold rewind starter in a vise. Slide

rope and untie the knot. Pull out the rope com-

pletely.

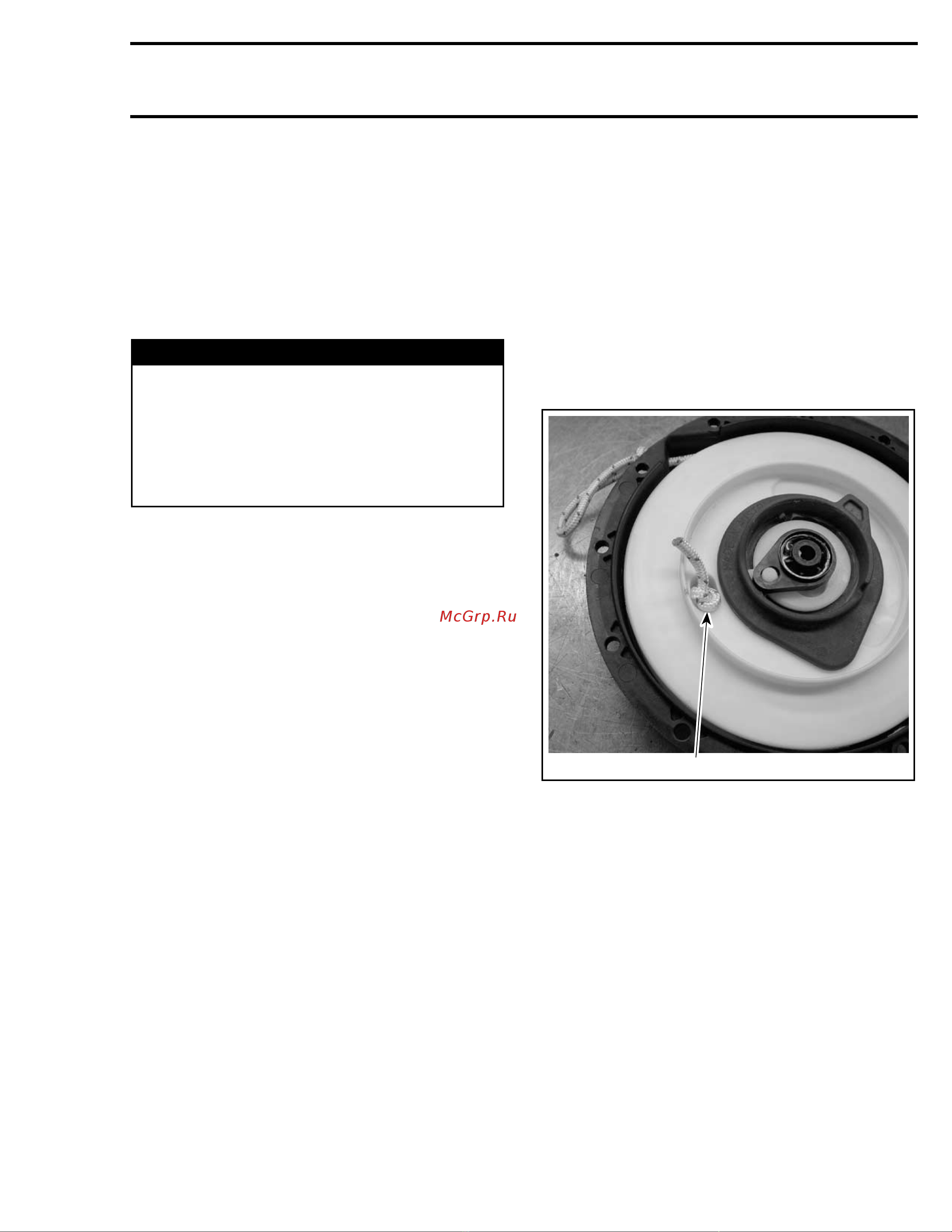

A32C6GA

1. Knot to be untied

NOTE: When rope is completely pulled out, spring

preload is 4-1/2 turns.

DISASSEMBLY

Undo knot previously tied at removal. Let sheave

get free to release spring preload.

Cut push nut no. 11 and discard. Remove locking

element no. 10,O-ringno. 9, step collar no. 8,

pawl lock no. 7 and pawl no. 6.

Remove sheave no. 4 from starter housing no. 1.

Hold spring with a screwdriver.

mmr2005-121 91
