Section 08 DRIVE SYSTEM
Subsection 02 (DRIVE PULLEY)
Check lever bolts no. 19 for wear, replace as re-
quired.
O-ring and Slider Shoe
Check if O-rings no. 20 are cracked, cut or
crushed. Replace as required.
Check slider shoes no. 9 for wear. Replace if
groove is not apparent on top.
Fixed Half and Governor Cup
Inspect splines and free play between both parts.
Maximum free play is 0.5 mm (.020 in) measured
at calibration screw radius. Replace if required.
Sliding Half and Spring Cover Bushings
Visually inspect coating of bushings no. 14 and
no. 15. Replace if worn.
Sliding Half Bushing Replacement
NOTE: In case of worn out bushing, it is advisable
to replace whole sliding half assembly as replac-
ing just the bushing may reduce the drive pulley
performance.

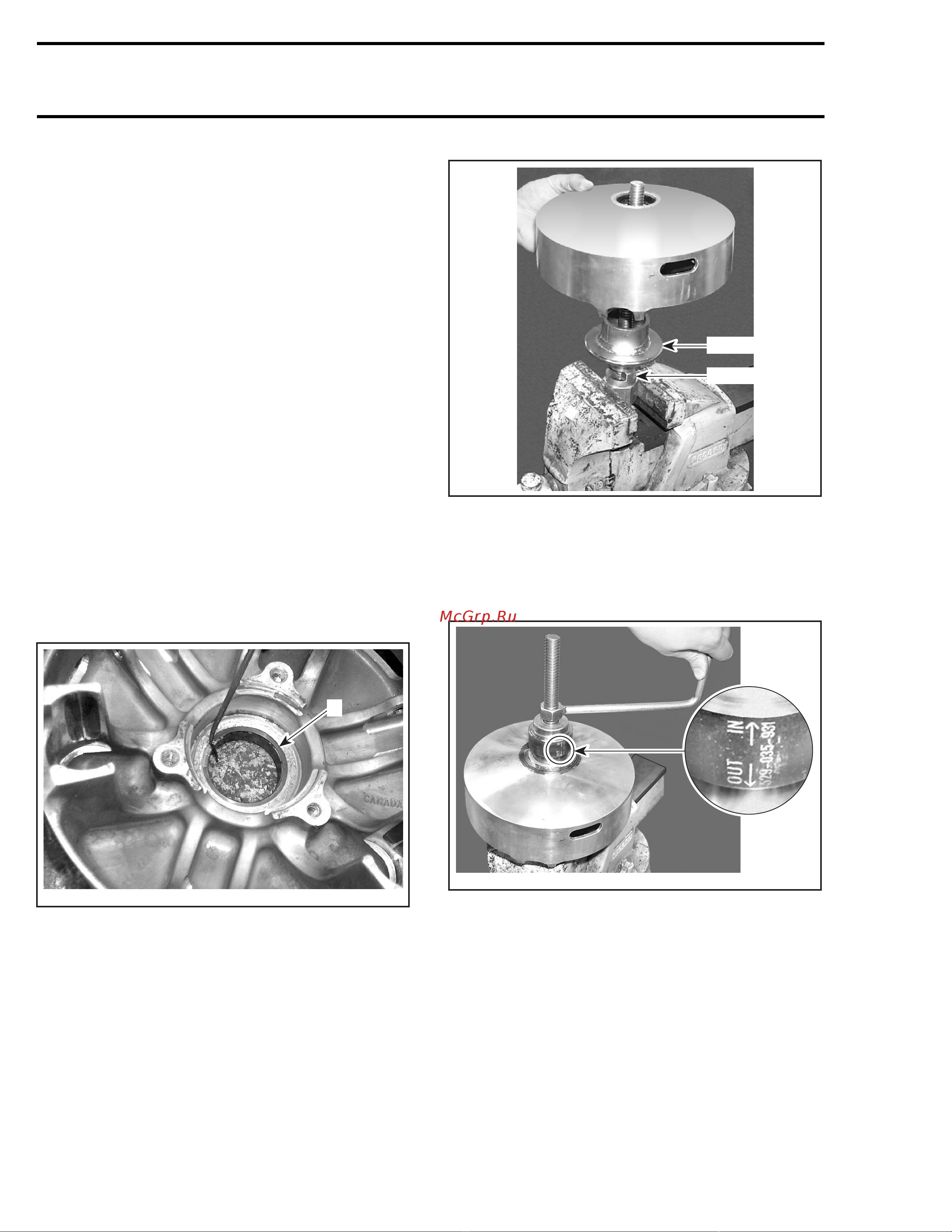

Remove circlip no. 21 from the sliding half.
A32D2TA
1
1. Circlip
Secure the spring compressor (P/N 529 035 524)
in a vice. Mount the bushing remover/installer
(P/N 529 031 200) and the sliding half assembly
on it.
A32D2UA
529 031 200
529 035 524
Use the sliding half bushing remover/installer
(P/N 529 035 931) to press out old bushing.
NOTE: Make sure to use the tool as marked; to
remove the bushing press using the side marked
“OUT”, as shown below in the picture.
A32D2VA
Use a soft sand paper to clean sliding half bushing
mounting surface.
332 mmr2005-087
