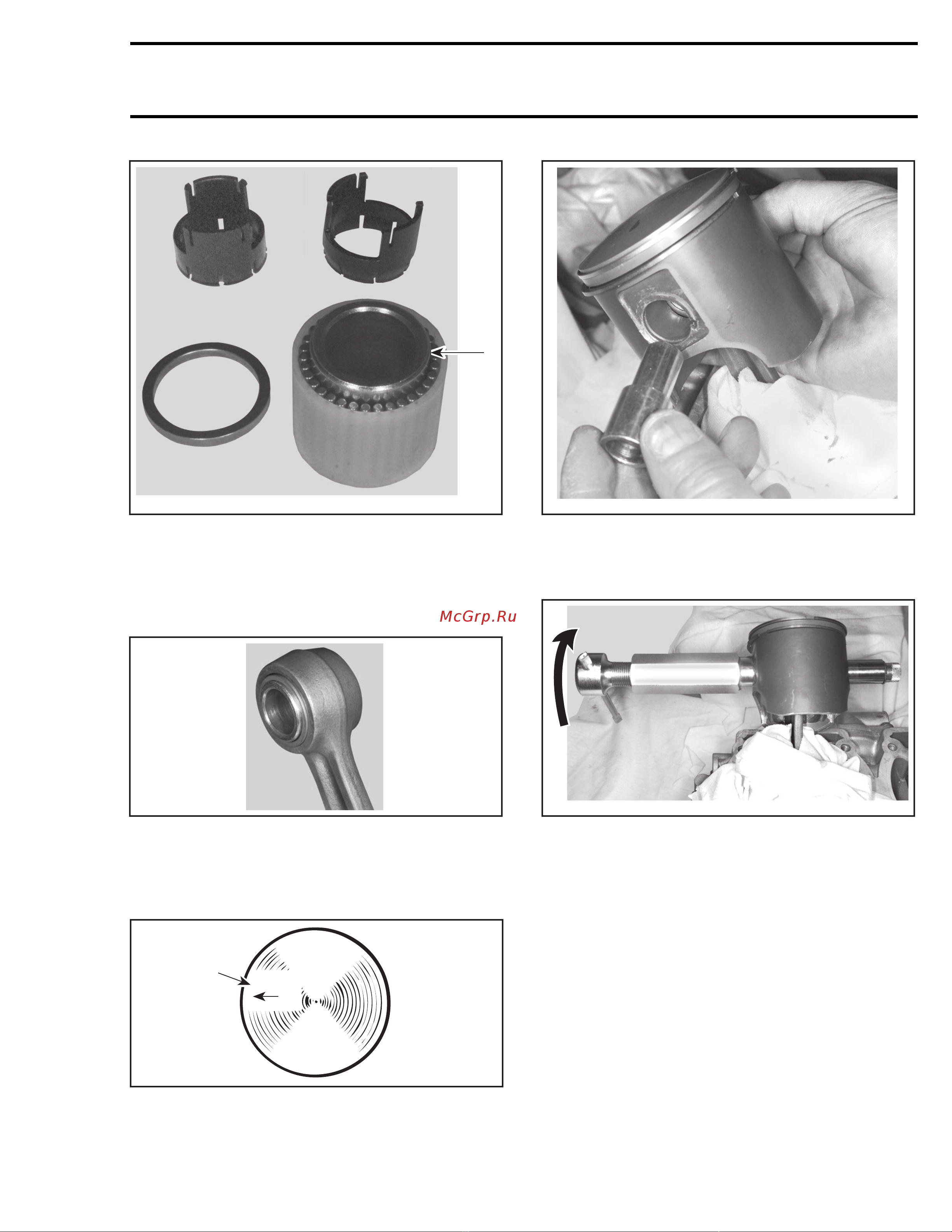

Section 03 ENGINES
Subsection 05 (TOP END)
1
A02C2GA
TYPICAL
1. Sleeve
Grease thrust washers and install them on each
end of needles.
Insert cageless bearing into connecting rod.
A02C2HA
TYPICAL — CAGELESS BEARING AND SLEEVE INSTALLED
Mount piston over connecting rod with the letters
“AUS” (over an arrow on the piston dome) facing
in the direction of exhaust port.
A01C01A
AUS
1
1. Exhaust
Install shouldered sleeve.
A02C2IA
TYPICAL — SHOULDERED SLEEVE INSTALLATION
Install piston pin puller and turn handle until piston
pin is correctly positioned in piston.
A02C2JA
TYPICAL
– Remove piston pin puller and sleeve kit.
Use piston circlip installer (P/N 529 035 686) to
install new mono-hook circlips no. 10.
Insert circlip into support in such a way that when
installed in piston groove, the tab will face upward.
mmr2005-072 89
