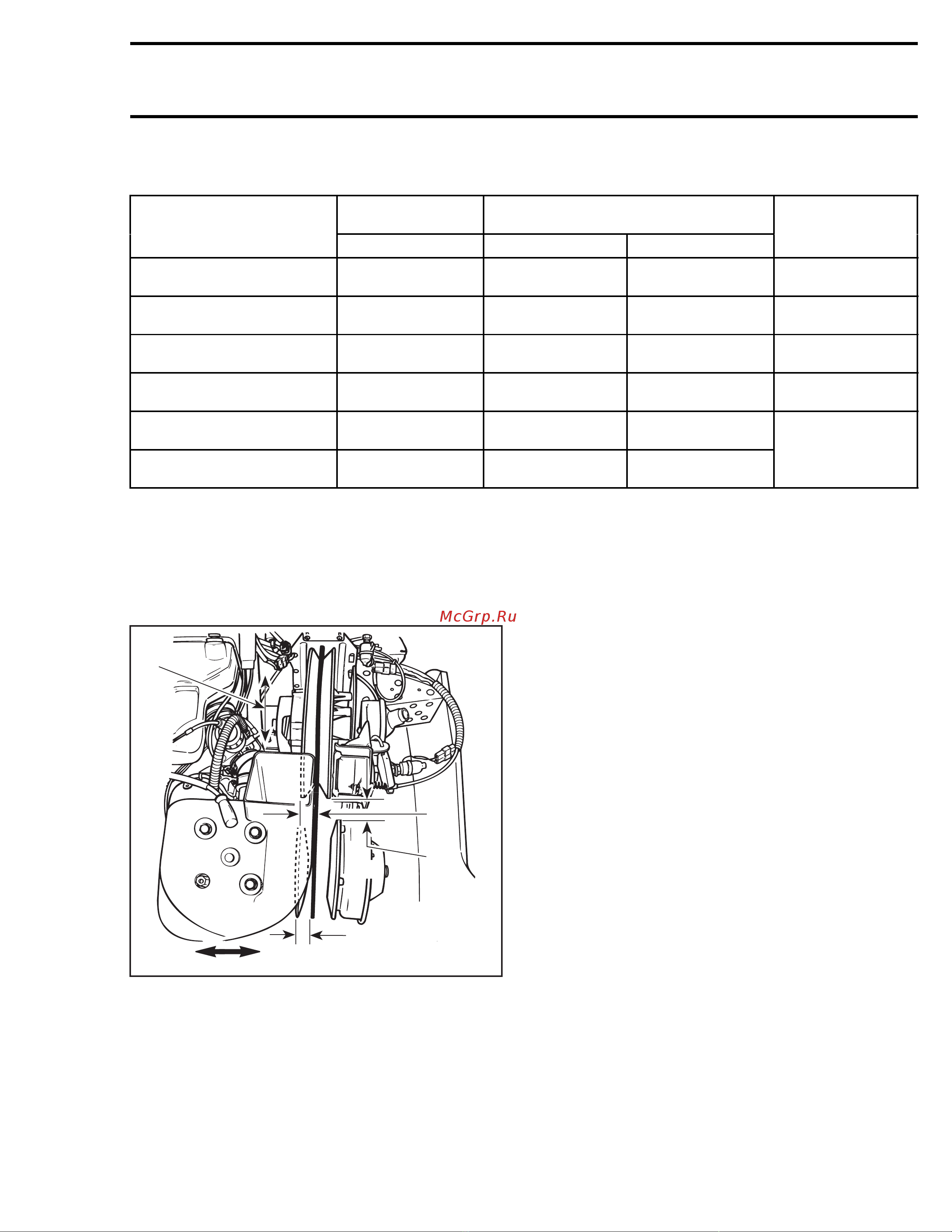

Section 07 TRANSMISSION
Subsection 04 (PULLEY DISTANCE AND ALIGNMENT)
PULLEY ALIGNMENT AND DISTANCE SPECIFICATIONS CHART
PULLEY
DISTANCE
OFFSET
MODELS
Z X Y-X
ALIGNMENT BAR
➀
P/N
Tundra
37.0 + 0 - 1.5 mm
(1.457 + 0 - 0.3 in)
36.0 ± 1.0 mm
(1.417 ± .040 in)
0to1.5mm
(0 to .060 in)
529 026 900
Skandic LT/LT E
39.0 + 0 - 1.0 mm
(1.535 + 0 - .039 in)
37.0 ± 0.75 mm
(1.457 ± .030 in)
0.75 to 1.5 mm
(.030 to .060 in)
529 035 808
Skandic WT/SWT/SUV 550
41.8 + 0 - 1.0 mm
(1.645 + 0 - .039 in)
35.0 ± 0.75 mm
(1.380 ± .030 in)
0.75 to 2.25 mm
(.030 to .086 in)
529 035 974
Skandic WT LC/SUV 600
35.5 + 0 - 1.0 mm
(1.400 + 0 - .039 in)
37.0 ± 0.50 mm
(1.456 ± .020 in)
0.75 to 2.25 mm
(.030 to .086 in)
529 035 545
Expedition TUV 600 HO SDI
61 + 0 - 1.0 mm
37.0 ± 0.50 mm
(1.456 ± .020 in)
0.75 to 2.25 mm
(.030 to .086 in)
Expedition TUV V-1000 61 + 0 - 1.0 mm
37.0 ± 0.50 mm
(1.456 ± .020 in)
0.75 to 2.25 mm
(.030 to .086 in)
(Universal)
529 035 831
➀ Alignment bars have been made according to pulley alignment mean values. However, they do not
take into account allowed tolerances for alignment specifications. They are used as GO/NOGO gauges
for quick alignment and pulley distance check and as reference to reach alignment nominal values.
Pulley Distance Adjustment Method
Tundra
Y
X
A05D0CA
1
2
Z
1. Driven pulley movement
2. Engine movement
CAUTION: The rear suspension must be
mounted on the vehicle and track tension
and alignment must be done to provide the
right frame width.
Loosen the 4 chaincase retaining bolts, unlock and
raise pulley support.
Move chaincase to obtain specific adjustment and
adjust driven pulley support length accordingly
(light contact).
mmr2005-037 383
