Section 07 TRANSMISSION
Subsection 08 (DRIVE CHAIN)
DRIVE CHAIN
GENERAL

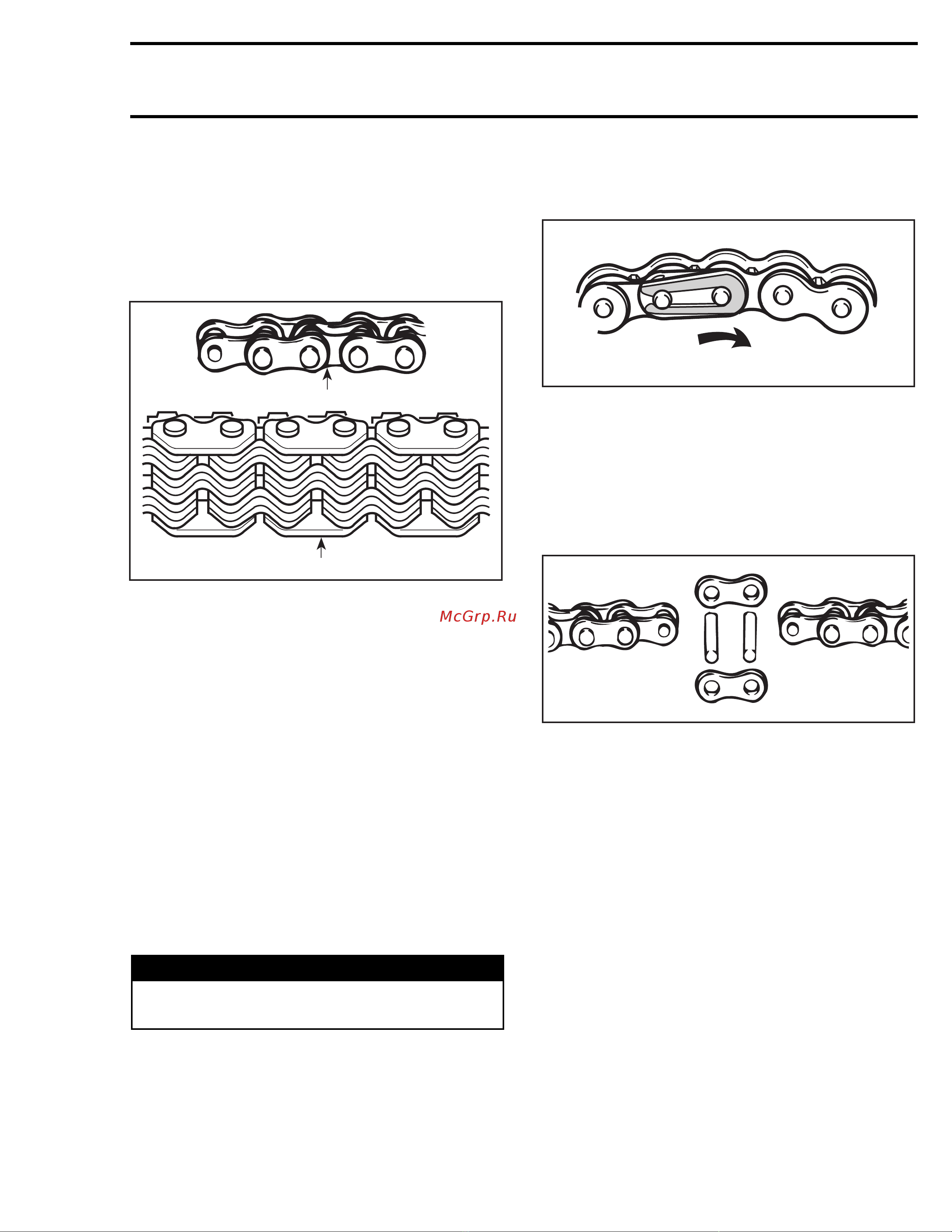

Bombardier drive chains exist in 2 types, for prop-
er use refer to TECHNICAL DATA.
A00D0QA
1
2
1. 1/2 in single
2. 3/8 in silent chain
SILENT CHAIN
There are 2 types of silent chain. One is 11-plates
wide and the other is 13-plates wide (stronger).
Do not interchange sprockets. Fit chain on
sprockets to make sure using right ones accord-
ingtowidth. RefertoTECHNICALDATA.
NOTE: No work (separation, lengthening) can be
done on the silent chain type.
CHAIN ATTACHMENT
When joining chain ends, the open end of the cir-
clip must be on opposite side of chain rotation.
The circlip should also be facing the outer side of
chaincase.
WARNING
Always ensure that the connecting link circlip
is in good condition and is properly secured.
A00D0RA
1
TYPICAL
1. Rotation
CHAIN SEPARATION
When separating an endless chain, always use a
chain bearing pin extractor. Also, make sure to
remove one complete link.
A00D0MA
NOTE: Chain connecting link should only be used
to lengthen or shorten a chain when changing the
sprocket(s) for one(s) with a different number of
teeth. A stretched chain must never be shortened
because the chain pitch has changed (increased)
and will not properly match the sprocket pitch,
causing premature wear.
NOTE: RefertoTECHNICALDATA,forchain
length according to gear ratio of each specific
vehicle.
