Section 03 ENGINES (2-STROKE)
Subsection 01 (277 ENGINE TYPE)

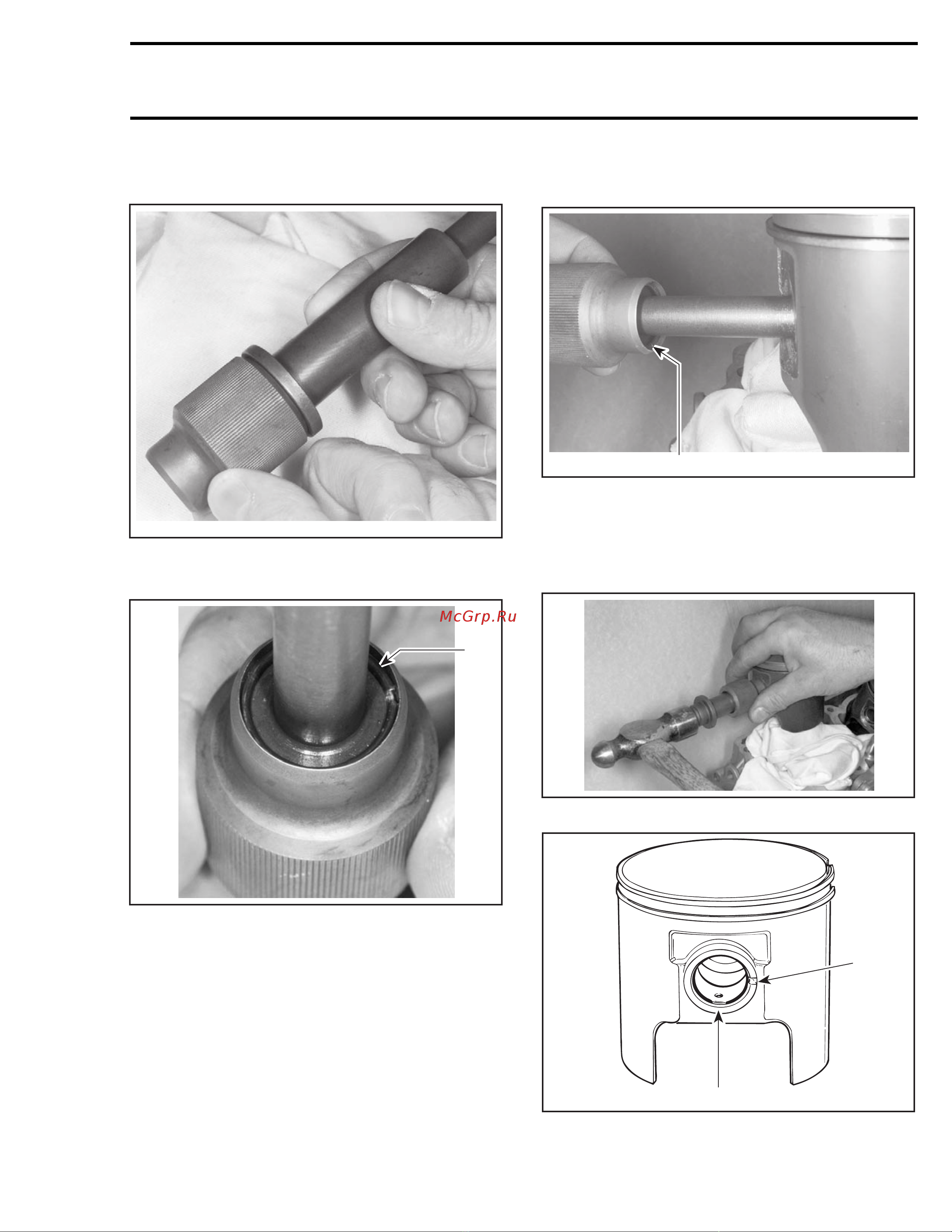

Continue to square it up using round end of circlip
installer.
A02C2MA
Using square end of tool, push circlip in until it
rests in groove.
A02C2NA
1
1. Circlip in groove
Mount tool in piston making sure that circlip break
is facing down.
1
A02C2OA
TYPICAL
1. Circlip break facing down
Hold tool firmly against piston then strike on round
end of tool. Circlip will move from tool groove to
piston groove.
A02C2PA
TYPICAL
1
2
A01C02A
1. Piston notch
2. Circlip break
mmr2005-010 55
